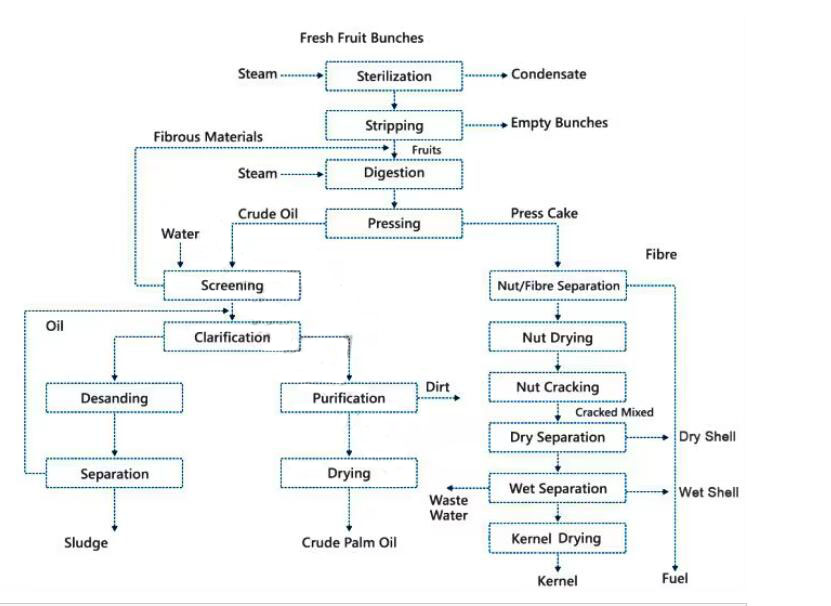

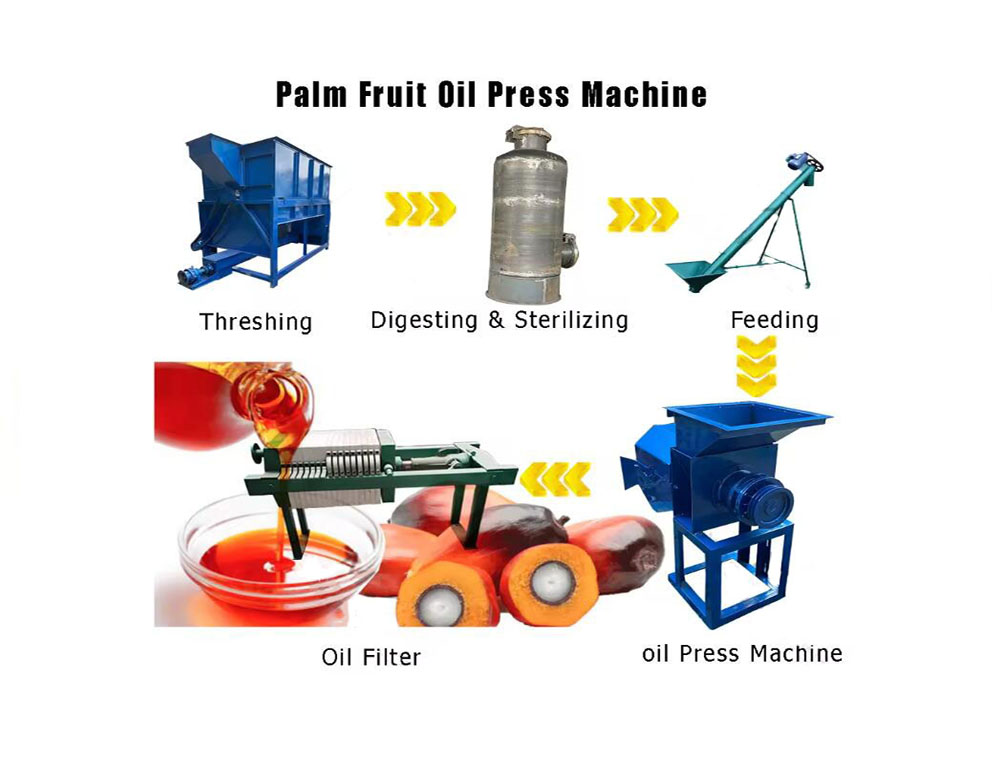

Small Palm Oil Production Line Machine in Nigeria with 1~10 ton per day production output, the total processing , including threshing, digesting and sterilizing, oil pressing and oil filtering. One of the reasons of small scale palm oil mill are very common in the global market including is that they are affordable and they are enough to produce sufficient amounts of palm oil for local business.

Specification

Small Palm Oil Production Line Machine in Nigeria

Small Palm Oil Production Line Machine

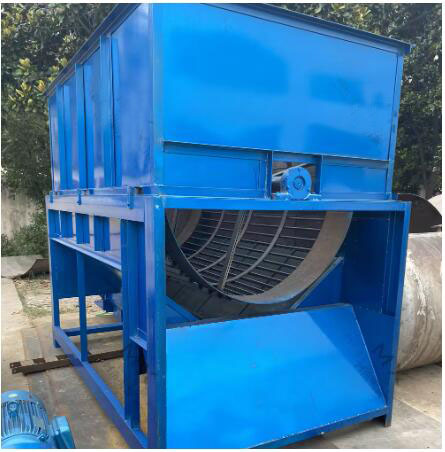

Threshing
Stripper is widely used in mini and small palm oil extraction mill. The palm fruits account for about 60% of the whole fruit bunch, and the purpose of threshing is to separate palm fruit from the fruit bunch. There is equipped with a lightweight rod in the thresher. When the drum rotates, the palm fruit bunch moves upwards and then falls under the force of gravity, so that palm fruit vibrates from the fruit bunch. The drum is continuously turned over until it is discharged from the bottom.

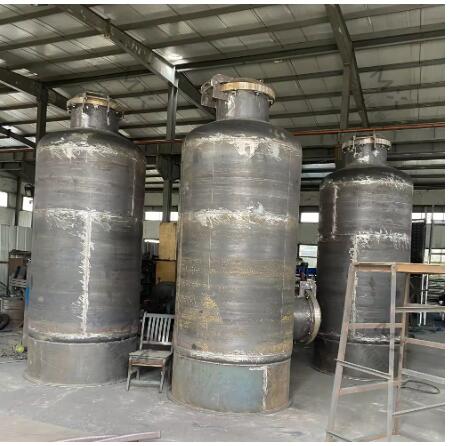

Sterilizing
The palm fruits are subjected to high temperature cooking for about 60 minutes by hot water (about 100 ℃) to destroy the lipase in the fruit to avoid the increase of free fatty acid content in the oil. In addition, high temperature killing can make the fruit soft, which is beneficial to the subsequent shelling of the core and reduce the damage of the kernel.

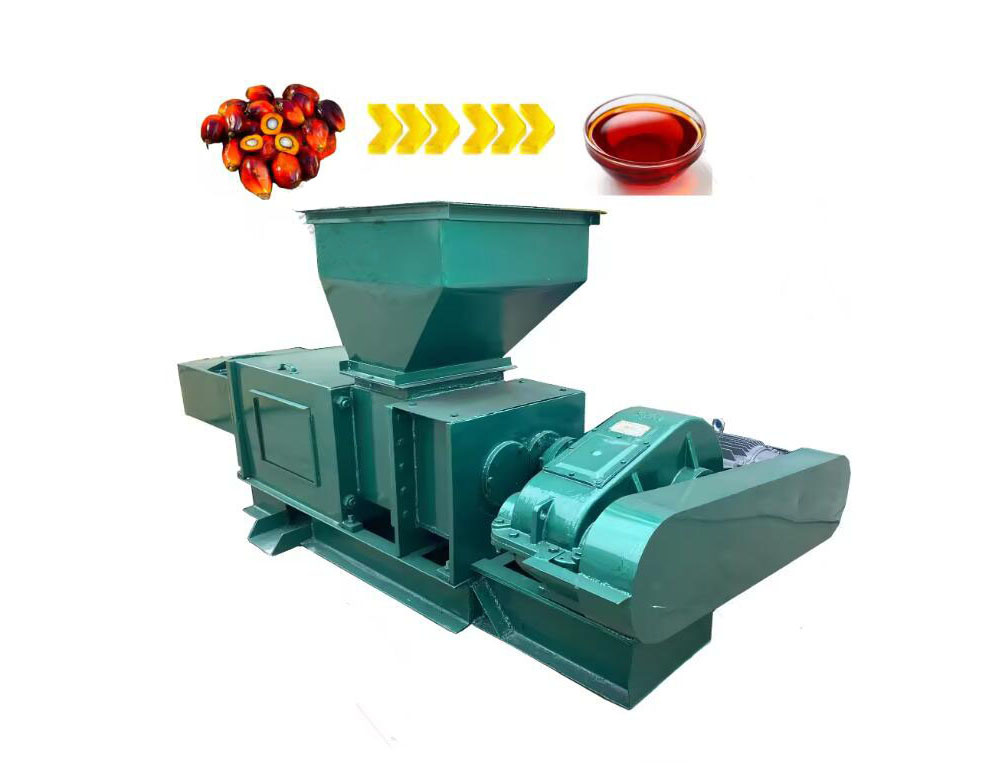

Palm fruit oil press machine
Screw pressing is the main method of palm oil extraction. In pressing stage, mechanical screw palm oil pressing machine is used to extract the oil out of digested palm pulp which is a mixture of oil, water, fibre and nuts.

How it works

1. Loading: Load the palm fruits into the hopper.
2. Pressing: The machine crushes and presses the fruits to extract oil.
3. Collection: The extracted oil is collected in a separate container.
4. Filtration: The oil can be filtered to remove impurities for a higher quality product.

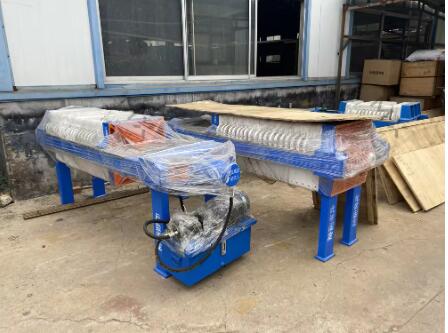

Filter
Oil filter press is a kind of plate oil-filter which is widely used in small scale oil processing plant or small refinery plant for separating solids from crude oil for manufacturing edible or cooking oil.

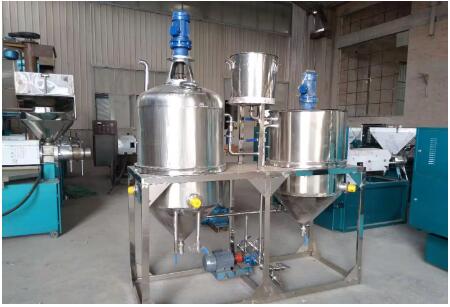

Oil refining machine
This refining plant consists of refining tank, decolorizing tank, deodorizing tank and filter, oil pump and electrical control system, It can realize palm oil degumming, deacidifying, drying, decolorizing, and deodorizing.
