Large Capacity Coconut Oil Pressers Copra Oil Extraction Equipment Machine
| Use: | palm oil extraction plant machinery manufacturer |
|---|---|
| Model Number: | 10-200TPD |
| Certification: | CE,BV,ISO9001 |
| Type: | palm oil extraction plant machinery manufacturer |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
The screw oil press is a machine that uses the external force of the machine to increase the temperature, activate the oil molecules, and squeeze the oil out of the oil.

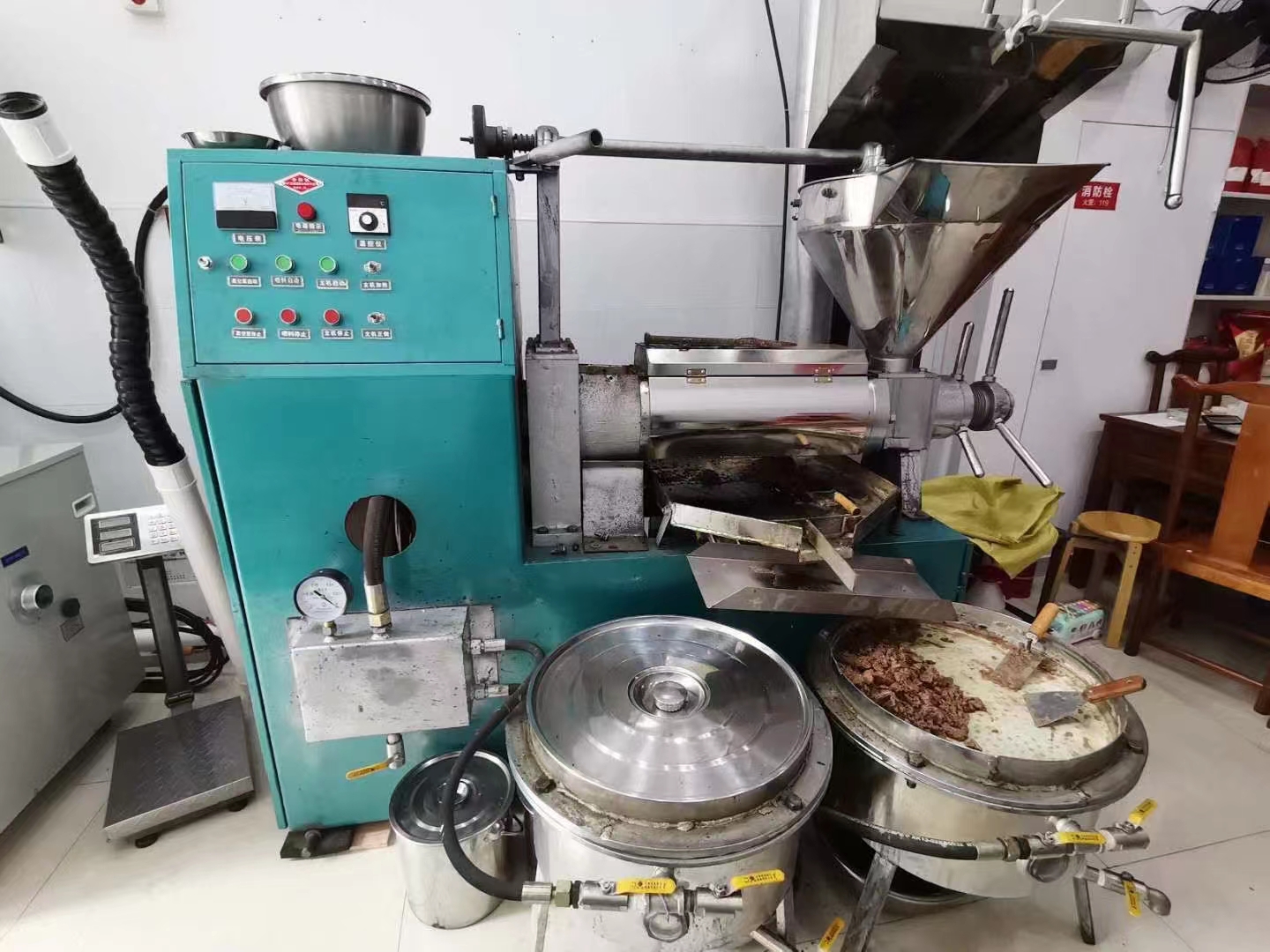

This coconut oil machine is mainly composed of five parts: the electric control part, the heating and pressing part, the adjusting part, the transmission part and the vacuum filter oil.
1.The electric control part is composed of air switch, AC contactor, temperature control instrument, circuit automatic protection device.
2.The heating and pressing part is composed of a heater, a pressing screw, a machine body device, etc.
3.The transmission part is composed of the main shaft and the gear box, the pulley, the motor wheel etc..
4.The speed adjusting part is composed of an adjusting screw, a regulating nut, a handle and a locking nut etc..
5.The vacuum filter oil part is composed of the vacuum pump, oil filter tube line and other assembly components
| Model | MX60 | MX70 | MX80 | MX100 | MX125 | MX150 |
| Screw diameter mm |
55 | 65 | 80 | 101 | 125 | 150 |
| Screw speed r/min |
52 | 48 | 47 | 38 | 36 | 35 |
| Power kw |
2.2 | 3 | 5.5 | 7.5 | 15 | 30 |
| Product capacity kg/h |
30-60 | 50-80 | 60-130 | 140-280 | 300-400 | 500-600 |
| Weight kg |
220 | 280 | 780 | 1100 | 1280 | 2000 |
| Dimension L*W*H(mm) |
1200*780*1400 | 1400*860*1260 | 1700*1200*1500 | 1800*1300*1680 | 2100*1400*1700 | 2200*1400*1700 |
